This Is Why SEO Tools Are Lying About Search Volume

Keyword Search Volume — The Most Deceptive Metric in SEO

Some of the most important decisions in SEO are based on search volume data. We use it to compare keywords, to guide our content strategy, and to make traffic projections. We may even use it to predict conversions and revenue. And yet, it is one of the least reliable pieces of data to exist in SEO.

If you ever tried comparing search volume data across keyword tools, you probably know that the numbers are usually very different. Like, surprisingly different. For example, here is what happens when I research the same keyword across some of the most popular SEO tools:

Moz: 9.3K-11.5K
Ahrefs: 40K
Semrush: 301K
Rank Tracker: 180K

There is a 30 times difference between the lowest estimate from MOZ and the highest one from Semrush. So, which one should you use? And, knowing there are such discrepancies between search volume data, can you really use it to make SEO decisions? To answer these questions, I look into the sources of search volume data, the ways it is processed, and the solutions used by popular keyword tools.

How do SEO tools calculate search volume?

Since Google has a monopoly on search, it is the only company that actually knows how often something is searched online. No other company can possibly collect that much data and all SEO tools without exception have to ask Google for their search volume numbers. So, whenever you use an SEO tool to check search volume, it is based on the data provided by Google Ads (Keyword Planner).

Except, we already know that different keyword tools show very different search volume numbers. The reason is that back in 2016, Google Ads had stopped sharing exact search volume numbers with free users and switched to sharing volume buckets instead. So, if in the past the information was presented like this:

Today, unless you are running paid campaigns through Google Ads, all you get is a pretty large bucket, like this:

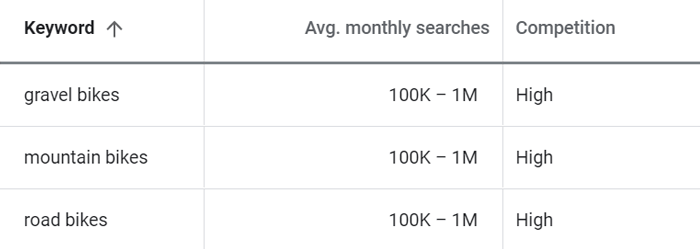

Buckets are clearly a problem because they make it difficult to compare keywords. For example, according to Google, gravel bikes, mountain bikes, and road bikes fall within the bucket of 100K-1M searches per month. But what if I don’t have enough resources to work on both keywords? How do I choose which one to prioritize? What if one is actually searched 100K times per month and another one 999K times per month? It could make or break my business.

Faced with this change in Google’s data, keyword tools were looking for a way to supply their clients with more usable numbers. In this quest, they started to collect search volume data from additional sources and use it to go from buckets to specific readings. Here are some of the data sources currently employed by keyword tools:

Clickstream data

Apart from Google, our online behavior is monitored by a whole host of plugins, browsers, browser extensions, antivirus programs, and internet providers. Most user agreements that we accept so blindly, allow them to collect anonymized user data — clickstream data.

The problem with these apps is that none of them have the user base and the access of Google. Individually, each of them can only observe a very small part of the web. This is where data aggregators come in. These are the companies that buy clickstream data from multiple sources, merge it, clean it, and sell it to third parties, like SEO tool developers.

Now, the data bought from aggregators is nowhere near the data from Google in terms of volume and reliability, but it is still useful. When cross-referenced with Google’s search volume buckets, it can indicate which keywords are more popular or less popular relative to other keywords. Basically, it helps keyword tools to make an educated guess of where the search volume falls within the buckets provided by Google.

Google Ads forecasts

Another type of data that may hint at more specific search volumes is Impressions calculated in Keyword Planner’s Forecasts. Forecasts is the tab in Keyword Planner, where you can see how many impressions your ad would get per given spending:

The problem with forecasted impressions is that they have too many moving parts. The numbers depend on things like your bid preferences, competition, search partner policies, your own ad history or a lack of thereof, and it may or may not include search volumes for other similar keywords. In the end, impressions do not equal organic search volume, but they are a good indicator of which end of the bucket you should aim for.

User data

Finally, some keyword tools may allow users to import search volume data from other sources. One way it can be done is via integrations with the user’s Google accounts. For example, if you run paid ads with Google you can connect your Google Ads account to your keyword tool and source reliable search volume data directly from there.

What are the common problems of search volume data?

We’ve established that keyword tools are not happy with Google data, now let’s take a closer look at some of the problems that they are trying to solve.

Averages

By default, Google calculates search volume as a monthly average of the past twelve months. The problem with the average value is that it does not necessarily reflect the latest information. If the search term is seasonal, for example, or if it’s recently been gaining or losing popularity, then its current search volume may be much higher or lower than its annual average.

Luckily, Google allows calibrating its data and we can request the search volume for any time period. Some keyword tools may choose to use shorter periods — their search volume data will be more current, but it will also be more volatile throughout the year.

Groupings

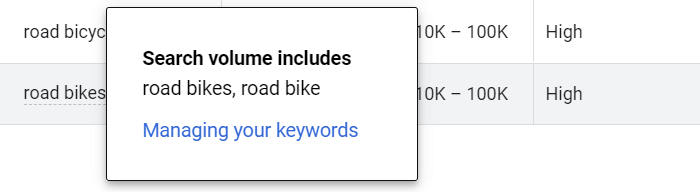

Google would often group similar keywords together and assign them the same search volume. In the image below, for example, Google considers road bike and road bikes to be one and the same:

Keywords may be grouped when Google considers the differences between them to be insignificant and when variations have an identical intent. As a general guide, here are the most common cases when Google would group keywords:

Type of grouping Example
Typos Bianchi bikes / Bianki bikes
Singular/plural forms road bike / road bikes
Abbreviations  NYC / New York City
Reordered words  winter jacket / jacket winter
Function words mens jackets / jackets for men
Synonyms cycling trail / biking trail

Whether it is a problem or not is up for debate. Some say that groupings may mistakenly merge some terms with different search intent and it’s best to view each keyword variation separately. Others say that this would be a waste of time and if Google merges terms, then it means they are treated identically in search.

Among keyword tools, there is also no single approach. For a quick experiment, I’ve chosen some keywords grouped by Google Ads and ran them through other keyword research tools:

  Google Ads Rank Tracker Semrush Ahrefs Moz
road bike 10K-100K 38.6K 90.5K 27K 11.5K-30.3K
road bikes 10K-100K 68.1K 90.5K 11K 2.9K-4.3K
bike shop nyc 1K-10K 1510 4.4K 450 101-200
bike shop new york city 1K-10K 1010 4.4K 80 0-10
bianchi bikes 10K-100K 10K 18.1K 5K 851-1.7K
bianci bikes 10K-100K 10K 18.1K 90 0-10

We can see that some tools, like Semrush, are grouping everything in exactly the same way Google does. Others, like Moz and Ahrefs, are not grouping any keywords at all. Rank Tracker ungroups keywords when in doubt, but those that are definitely identical, like typos, are reported for the same search volume.

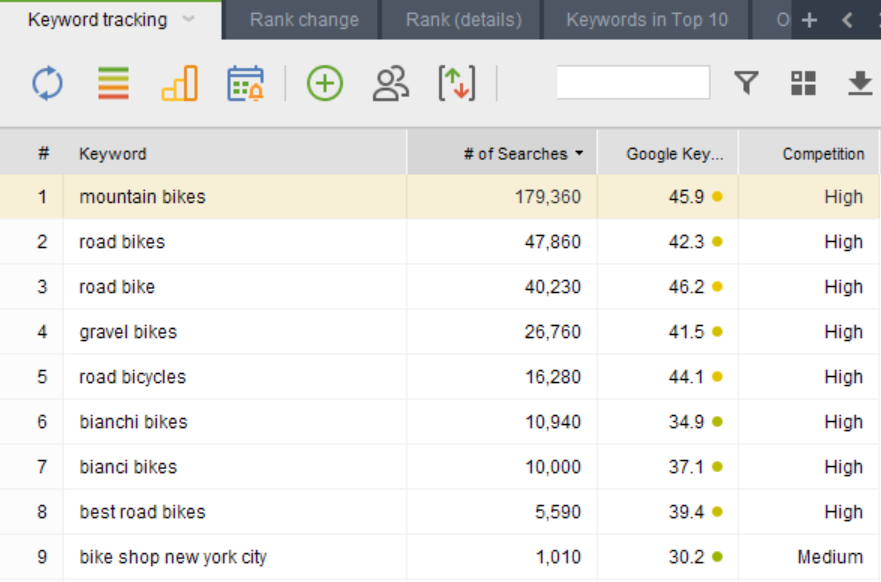

What’s Rank Tracker’s approach to search volume data?

Each keyword tool guards the way they calculate exact search volume numbers, so we can’t tell much about their methods, but we can share ours. For Rank Tracker, we do not buy any third-party data as we consider it to be too unreliable to serve to our users. Instead, we take search volume buckets provided by Google Ads and use a combination of Forecast settings to point to an exact number within this range.


Alternatively, if a user is running paid ads with Google, Rank Tracker has the option of connecting a Google Ads account and sourcing search volume data directly from there. All you have to do is go to Preferences > SEP/PPC data and choose My Google Ads Account as your Google Ads source:

Which tool has the most reliable search volume data?

While I can’t answer this question conclusively (not enough access to run a large scale test), I have chosen a sample of a couple of dozen keywords and ran them through popular keyword tools. I then compared their search volumes to the numbers from a paid Google Ads account.

As expected, no tool was a perfect match, but some did better than others. Semrush was a clear winner, followed closely by Rank Tracker and Ahrefs, while Moz had the least matches with actual data, and often off by a lot. Again, this was a very small test and probably has no value beyond mild amusement.

As a side note, I have also discovered that search volumes from different tools are almost perfectly correlated. In the table below for example, even though the numbers across the tools are different, all four tools agree that mountain bikes are the most popular, and gravel bikes are the least popular.

  Rank Tracker Semrush Ahrefs Moz
road bikes 68K 90K 11K 2.9K-4.3K
gravel bikes 25K 40K 8K 1.7K-2.9K
mountain bikes 89K 301K 24K 9.3K-11.5K

I have actually tested this on a wider sample of keywords and discovered a correlation score of 0.8-0.9. It means that as long as you are using search volume to prioritize keywords, it doesn't matter which tool you choose — keywords will remain similarly popular or unpopular across different tools.

Of course, if you want to use search volume data to make traffic, conversion, or revenue projections, then it’s an entirely different matter. So far, no tool looks up to the task.

How can you refine search volume data?

By now it’s kind of obvious that search volume data is highly speculative and that keyword tools do not entirely solve the problem. Luckily, there are some things you yourself can do to increase your confidence when using search volume.

Google Ads campaigns

Once you start running paid campaigns through Google Ads, you would be able to access much more detailed search volume numbers complete with trend graphs. The tool allows checking all keywords, not just the ones you advertise for, and you can also import/export keywords and use the data in other tools:

Google Trends

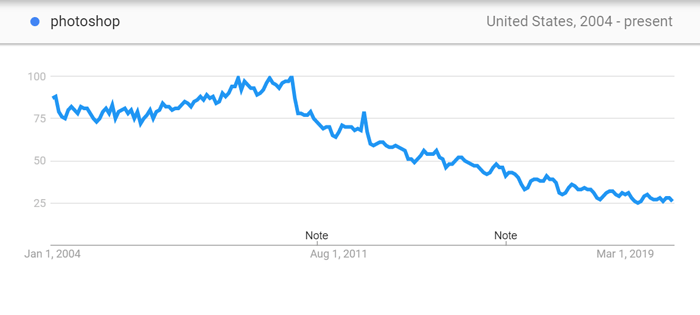

Before committing to a keyword based on its search volume numbers, visit Google Trends, and see where the numbers are actually headed. If you see a steady downward trend, then the search volume is already below what the tools are telling you, and it’s going to get worse from here.

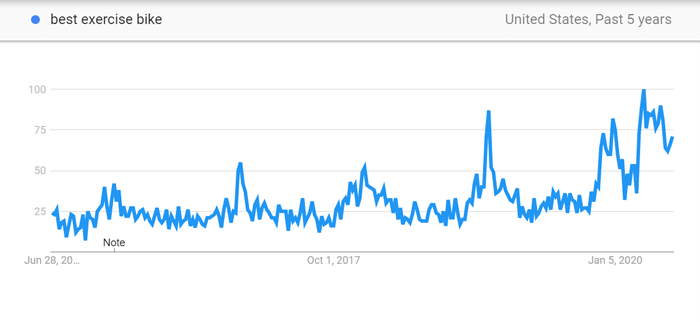

If you see a clear seasonal trend, then the search volume will change dramatically throughout the year, which is not a bad thing, but you should plan your activities accordingly.

Google Search Console

Once your keywords start ranking on the first page of search results, you can switch to Google Search Console (GSC) as your source of search volume data. Unlike Google Ads, GSC will give you the exact number of organic impressions your page is getting in search results. You can then compare this number to what you got from your keyword tools and see whether it’s off and by how much.

Final thoughts

The underlying thought of this post is that search volume numbers you get from SEO tools are nothing more than an educated guess and different tools guess very differently. This, however, doesn’t matter if you are using search volumes to prioritize keywords — regardless of exact numbers, most tools are accurate when indicating which keywords are more popular than others.
